I’ve been exploring with an interactive node-based visual audio simulation in UE4 purely as a way to dive deep into the audio engine’s potential and to try and get something that I think will be really interesting fun to mess with in my free time. The video below shows where it has been sitting for the last month since I messed with it last. Its got a ton of work left with it, but I think it is starting to show some interesting promise.

Early Test

More Refined Testing

4.22 Added a pretty amazing feature to unreal’s audio engine.

Baked Spectral Analysis Curves and Envelopes on Sound Waves

Sound waves can now be pre-analyzed for envelope and spectral energy to drive Blueprints during playback. This allows sound designers to create compelling audio-driven systems, while offloading the spectral analysis work to improve runtime performance. In addition, analysis data from a proxy sound wave can be substituted for a sound wave’s analysis data, allowing designers to spoof isolated sound events when trying to drive gameplay.

Every .wav file now has settings on it for being able to analyze the data and output it as something that could potentially be used for gameplay / animation techniques. Well.. turns out I might have a use for both of those things. For now I wanted to see how it works and how easy it was to implement.


Here are some settings I am experimenting with inside of the wav file uasset.

Boring Explaination of why I chose these numbers.
Everything is pretty much maxed out and from what I could tell the uasset does not appear to gain size by much when making these values very large. Honestly, they are all undocumented so I have no idea if cranking up these values or adding more and more frequencies to analyze is a horrible thing. I imagine it would be, but right now ¯_(ツ)_/¯

The biggest ones to pay attention to are “Frequencies to Analyze” and “Frame Size”. I am guessing that essentially if I have a 2048 FFTSize and a 4096 frame size then I essentially am allowing 2 frames per section of data? Maybe? WHo knows? WHAT I DO KNOW is that the frequencies to analyze actually do matter and it will do its best later on to try and match or lerp between the correct frequencies if you are trying to say grab something in the 300hz range but there is only data for 100hz and 500hz. (That was actually some nicely commented code under the hood. Thanks Epic!)

Blueprint Time. (Its actually not that bad)

Ok.. this part actually isn’t as hard as it might seem. Really this was super easy overall, just had to find the right nodes.

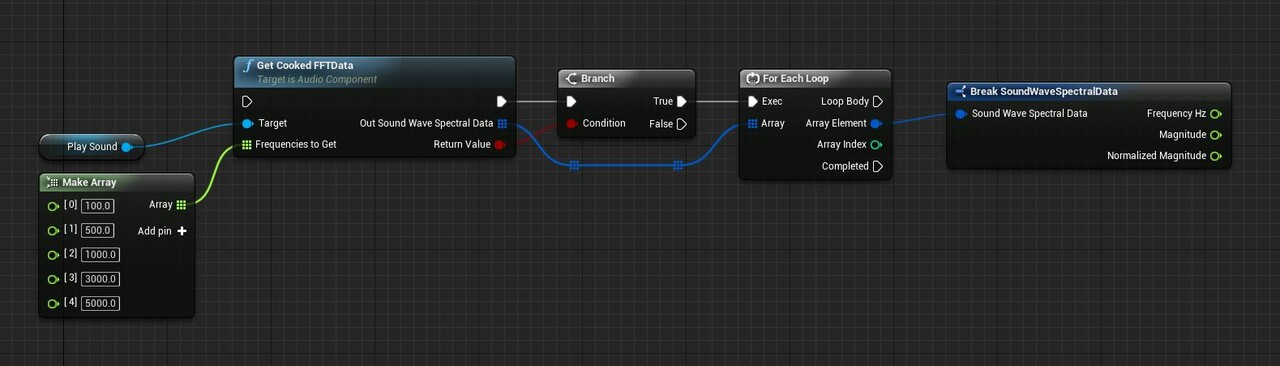

GetCookedFFTData is the magic node we are looking for and you get it directly from ANY AUDIO COMPONENT. It’s just built right in now which is fantastic. You hook this up to Event tick and you’ll get the Magnitude of the frequency you want whenever that sound is told to play. Since its directly inside of an audio component that also means that you don’t have to sync data up… I am .. really impressed it has this much integration to be honest. I was expecting like some back alley bridge of connectivity between 3 different systems.


With a little bit of a lerp on the magnitude to help smooth out some jitters, the result is not bad at all and I am rolling forward with this as a part of my sound player base class to be able to easily animate things with that data. Essentially now I get animation curves … for free? Hopefully the max settings thing doesn’t bite me later on. To test it I just replaced what used to be 3 animation curves ( One for attack, sustain, and release ) and now have just the straight up data from from the analysis. Which I think is pretty awesome. I am gonna further explore the capabilities of this as I harden a few more of the core systems for this thing. You should be able to notice the animations are much more accurate to the sound you actually hear.
